Galvanized Steel Composite Metal Decking 60 80 for Floor Slab Construction

Basic Information
Place of Origin: Zhejiang, China
Brand Name: FAMOUS
Model Number: Type 1
Minimum Order Quantity: 100
Price: $19
Detail Information
Material: Galvanized Steel GB US EU AS Std. Type: Corrugated Or Trapezoidal
Color: Grey Zinc Coating: 350g/m2
Surface Finish: Spangle Thickness: 2.0mm
Thickness Range: 0.8-1.2mm; Max 1.5mm Length: 0mm-11800mm
Width: 600mm-1025mm Thickness Tolerance: +/-0.04mm
Width Tolerance: +/-5mm Zinc Coating Range: 60-275g/m2
Load Capacity: Excellent Fireproof: Yes
Waterproof: Yes
Highlight:

galvanized steel composite decking

,

metal decking for floor slab

,

60 80 steel decking


Product Description

Galvanized Steel Composite Comflor 60 80 Metal Decking Formwork for Floor Slab System Construction
Product Specifications
Attribute Value
Project Solution Capability 3D model design
Material Galvanized steel GB US EU AS std.
Type Corrugated or trapezoidal
Color Grey
Zinc 350g/m²
Surface Spangle
Thickness 2.0mm
Key Features
  • Easy-installed, cost-saving, convenient transportation
  • Light-weight with excellent load capacities
  • Fireproof, erosion-resistant, and waterproof
  • Long lifespan, maintenance-free with beautiful appearance
  • G550 high strength high zinc coated
Product Description

Our galvanized composite metal floor decking offers a variety of metal thickness (0.50mm to 1.5mm) profiles and finishes to meet different requirements regarding span, insulation, waterproofing, imposed load, and thermal efficiency.

Technical Specifications
Parameter Details
Thickness 0.8-1.2mm; max 1.5mm
Length 0mm-11800mm
Width 600mm-1025mm (model dependent)
Thickness Tolerance ±0.04mm
Width Tolerance ±5mm
Zinc Coating 60-275g/m²
Certification ISO9001
Packing Seaworthy packing
Structural Advantages
  • Processed slots between corrugations available for engineering use (electric power, communications)
  • Reduces dead load of entire structure, saving foundation costs
  • Enhances lateral stability of supporting steel beams during construction
  • Optimizes mechanical properties of both steel and concrete
  • Eliminates need for formwork and its removal
  • Provides even ceiling surface for concrete buildings
  • Serves as safety work platform during construction
  • Cost-effective solution
Applications

Ideal for: power plants, power equipment companies, car showrooms, steel structure plants, cement warehouses, airport terminals, railway stations, stadiums, concert halls, theaters, supermarkets, logistics centers, and exhibition halls.

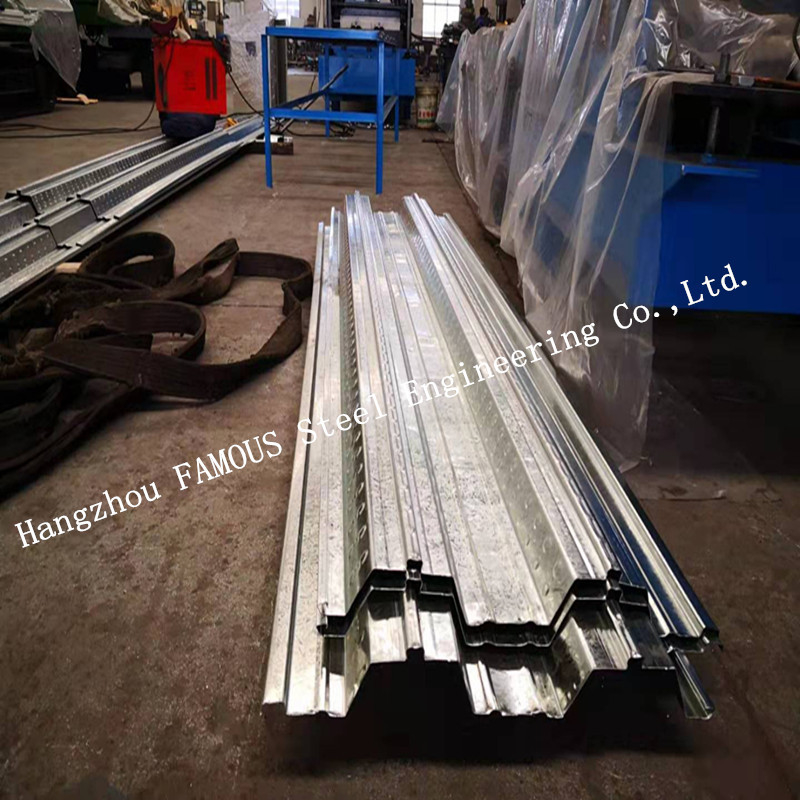

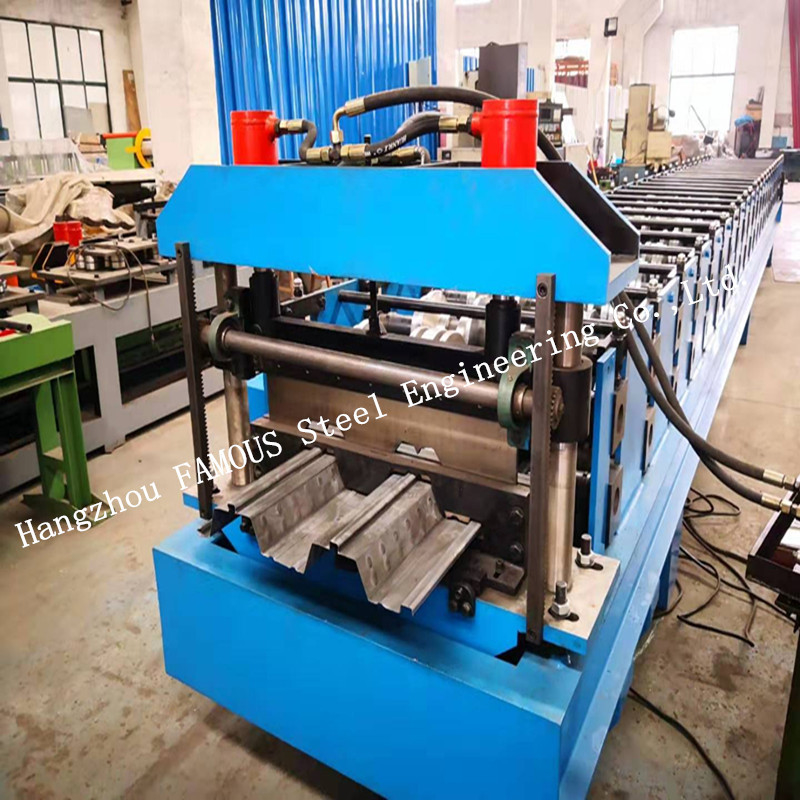

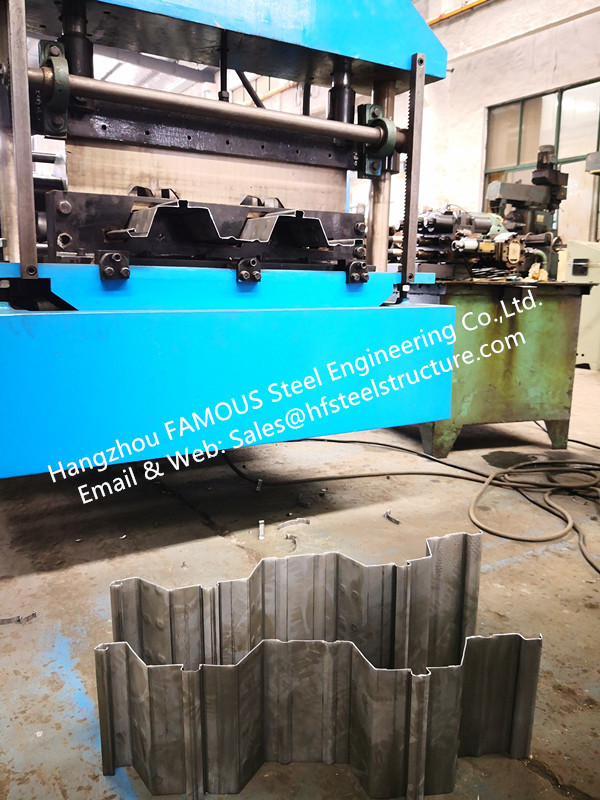

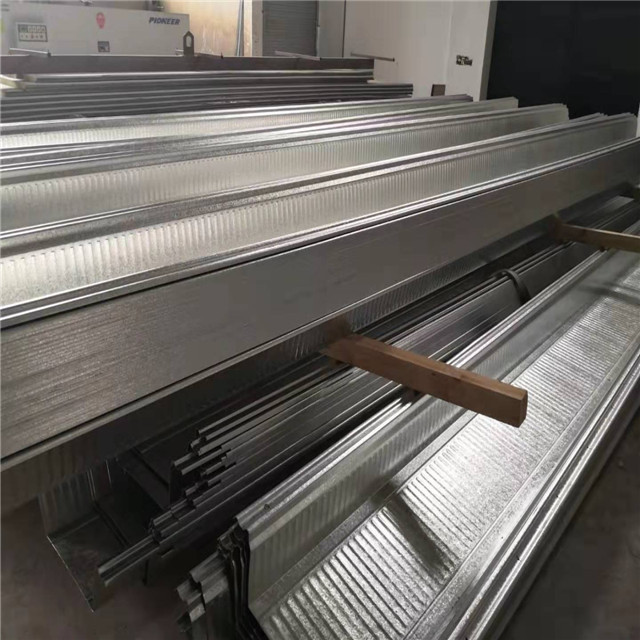

Galvanized Steel Composite Metal Decking 60 80 for Floor Slab Construction 0 Galvanized Steel Composite Metal Decking 60 80 for Floor Slab Construction 1
We welcome customer visits and can provide various models of decking series. Please contact us for more information.
